Forgotten Lessons Of The Past

Following the Christchurch earthquakes, engineering experts have recommended replacing heavy tile roofs with lightweight metal roofing.Inspections revealed that extensive damage was caused to houses by chimneys falling through heavy tile roofs or by the tiles coming loose and falling whereas metal roofing generally did not collapse under falling chimneys and was able to withstand the quakes themselves. That was one of the main findings of Wayne Brown, a trained civil/ structural engineer and Mayor of the Far North.

Brown was part of Operation Suburb, which involved a team of 400 building inspectors and 300 welfare officers visiting all homes in the affected suburbs to assess damage following the February 22 earthquake. Building inspectors red-stickered any dangerous or uninhabitable homes, and Mr Brown was one of a group of 12 engineers that provided follow-up to further assess borderline, tricky or dangerous structures and land subsidences and confirm or remove the red stickers.

Following that work during the first week of March, Mr Brown produced a report to Christchurch Mayor Bob Parker and the Minister of Housing, Maurice Williamson, outlining his findings.

In it, he says: “Simply put house damage fell into some obvious categories and some simple rules were agreed among the engineers that would have reduced the damage cost by billions if they had been in place.

“Flexible structures performed way better than rigid ones and the choice of cladding made a big difference. Earthquake responses are worse with increased structure weight, particularly weight up high.

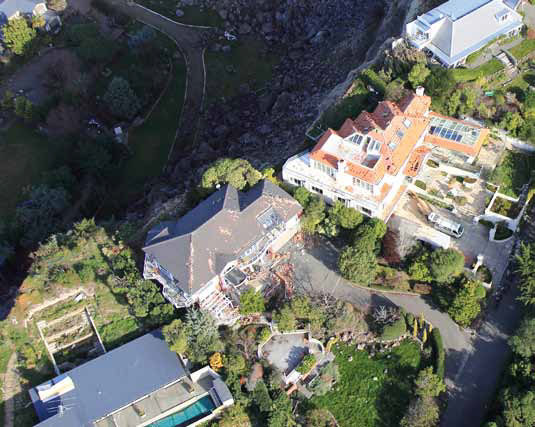

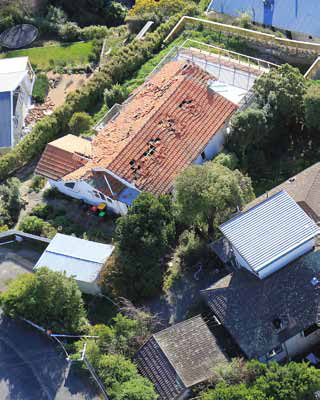

“Heavy roof tiles and brick chimneys consistently failed and as they fell they created more damage and danger to anyone below. Conversely corrugated iron roofs performed well, even when the chimneys fell as they kept the inhabitants safe. If this had been at night many would have died from falling tiles and chimney bricks. Why not ban both and use iron roofs and steel chimney flues.”

Echoing those findings is a report done by the Royal Society of New Zealand, the Institution of Professional Engineers New Zealand, the Structural Engineering Society New Zealand, the New Zealand Geotechnical Society and the New Zealand Society for Earthquake Engineering, who coordinated science and engineering expertise from across New Zealand. In a section concerning improving earthquake safety, the report recommends:

“When building, use ‘earthquake friendly’ materials like piled or waffle-slab foundations, timber (or light steel frame) walls and lightweight roofs. “Remove heavy roofs like concrete tiles and replace them with lightweight materials such as steel.”

The report also recommends that larger brick and masonry buildings can be earthquake-strengthened by either internal steel bracing or an external steel frame.

Another report, compiled by Prof Andy Buchanan and Michael Newcombe, at the University of Canterbury, points out the damage done by falling chimneys and how metal roofs were better able to withstand the impacts.

Their report says: “The most common type of damage for older buildings (more than 15 years old) was chimney collapse. This occurred in many thousands of buildings. “Falling chimneys could be interpreted as a violation of the ‘life-safety’ criterion required by New Zealand Standards (NZS1170.5:2004) for current building seismic design. Falling chimneys resulted in damage or piercing of the surrounding roof structure, damage to neighbouring properties, vehicles but (luckily) no loss of life.

“Chimney collapse on to corrugated steel roofing often caused no further damage,depending on the height of the chimney, but some fell through the roof or caused rafter failure. Chimneys falling on to tile roofs (concrete or clay tiles, or slate roofs) more often fell through into the house, sometimes causing further structural damage and potential loss of life.”

The experience in the United States has been the same where structural and civil engineers in Southern California say home builders and homeowners should increase their use of lighter weight roofing systems.

“When you put a heavy mass on your home, like a concrete roof versus lightweight steel or cedar shake, it causes problems when the ground shakes,” said James A. Bihr, a structural engineer and co-author of a study on the effects of the 6.8 Northridge earthquake on residential roofs in 1994.

The study, conducted by The McMullen Company, said lightweight materials “tended to withstand shaking and appeared to not contribute to other structural damage.” Yet hundreds of heavy tile roofs were damaged “where no other significant structural damage was obvious.”

In Wayne Brown’s report, Under a section entitled ‘Forgotten Lessons of the past’, he makes this point: “ECANZ have posters reminding of the swarm of earthquakes that damaged the Christchurch cathedral in the 1859 to 1870 period, yet it was widely reported that only the recent earthquakes have had this
effect. Locals built in timber frame and iron roofs for the fifty years following those 1870 earthquakes but slowly they forgot and moved to brick and tile with tragic consequences. The lesson of the metal chimney flue doesn’t seem to have made it south into Canterbury, yet these [brick chimneys] virtually
all failed often landing in the upstairs bedrooms.”

Also in the report in the section titled ‘Restoration recommendations’, Mr Brown observes, “Many houses with timber frames but tile roofs and brick veneers looked dreadfully damaged after the walls had fallen off and the tiles had fallen through the roof structure, but in many ways these houses have been made
much safer than they were. There are thousands of houses in this situation and it would be a waste to demolish these. Repairs are relatively simple. Reclad the roofs in corrugated iron (or if they must have tiles, use metal tile strips). This requires no structural change as this is a much lighter solution.
Mr Brown goes on to make these points about the Building Code:

“From this operation it is clear that complicated codes of recent years were of little benefit as they simply had not been followed or most likely not even understood or in wide public acceptance. Simple sensible widely accepted rules such as the six above would have done far more good than toughening up what is already a laughably long and complicated residential building code that concentrates on the wrong things. This earthquake has focused us all on what really matters and that is the choice of safe, reliable, easily built and inspected building products and systems.

The excellent performance of very old timber frame, corrugated iron houses that precede any current building code proves this. Good structural performance of houses was not code related but was impacted by the type of structure and the cladding and roofing choices and the flexible ones proved the best.
