Recessed Window Flashings


Window Flashings (Recessed)

 width=401 height=387 /> </p>  <p> <img  data-cke-saved-src=/sites/default/files/cop_22images/diag_6.4.2b.gif src=/sites/default/files/cop_22images/diag_6.4.2b.gif alt=
(optional caption)

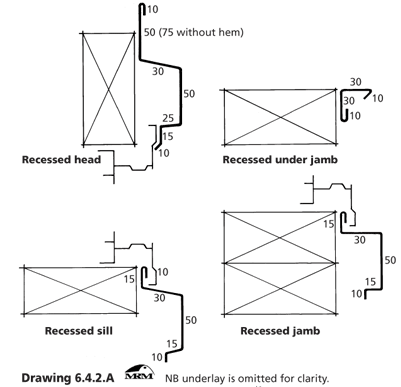

A recessed window flashing design is considered the best option for horizontal cladding but accurate flashing measurement and installation are required to provide weathertightness.

N.B. For lined buildings a cavity is required for horizontal metal cladding.

Similar to the flush detail, the head flashing can be folded vertically and not shaped to the profile if the corrugations on the underlap of the sheet are flattened .

Revision Category:
0 - Clause Removed
Revision Detail:

Clause removed.
