Internal Barge Flashing

A transition flashing must be provided when the roof cladding weathers the barge at an internal angle (see Transition Flashing) .

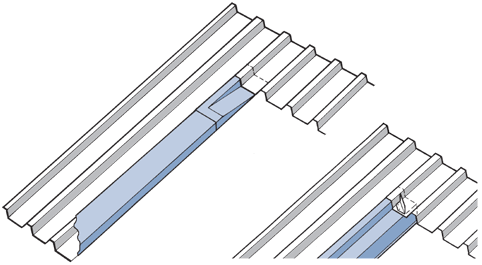

Transition Flashing

(optional caption)

Spouting has been omitted for clarity. The barge is overlapped by a transition piece, which in turn is overlapped by the higher sheeting. Where the pitch is low, a sloping transition is required to drain the water into the spouting.

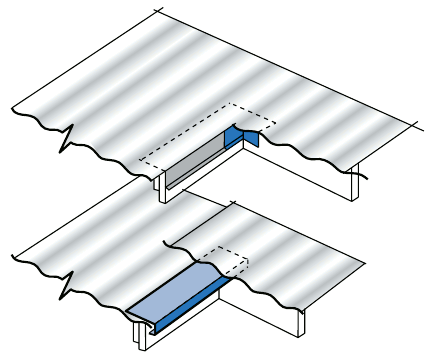

Transition Flashing — Alternative detail

(optional caption)
